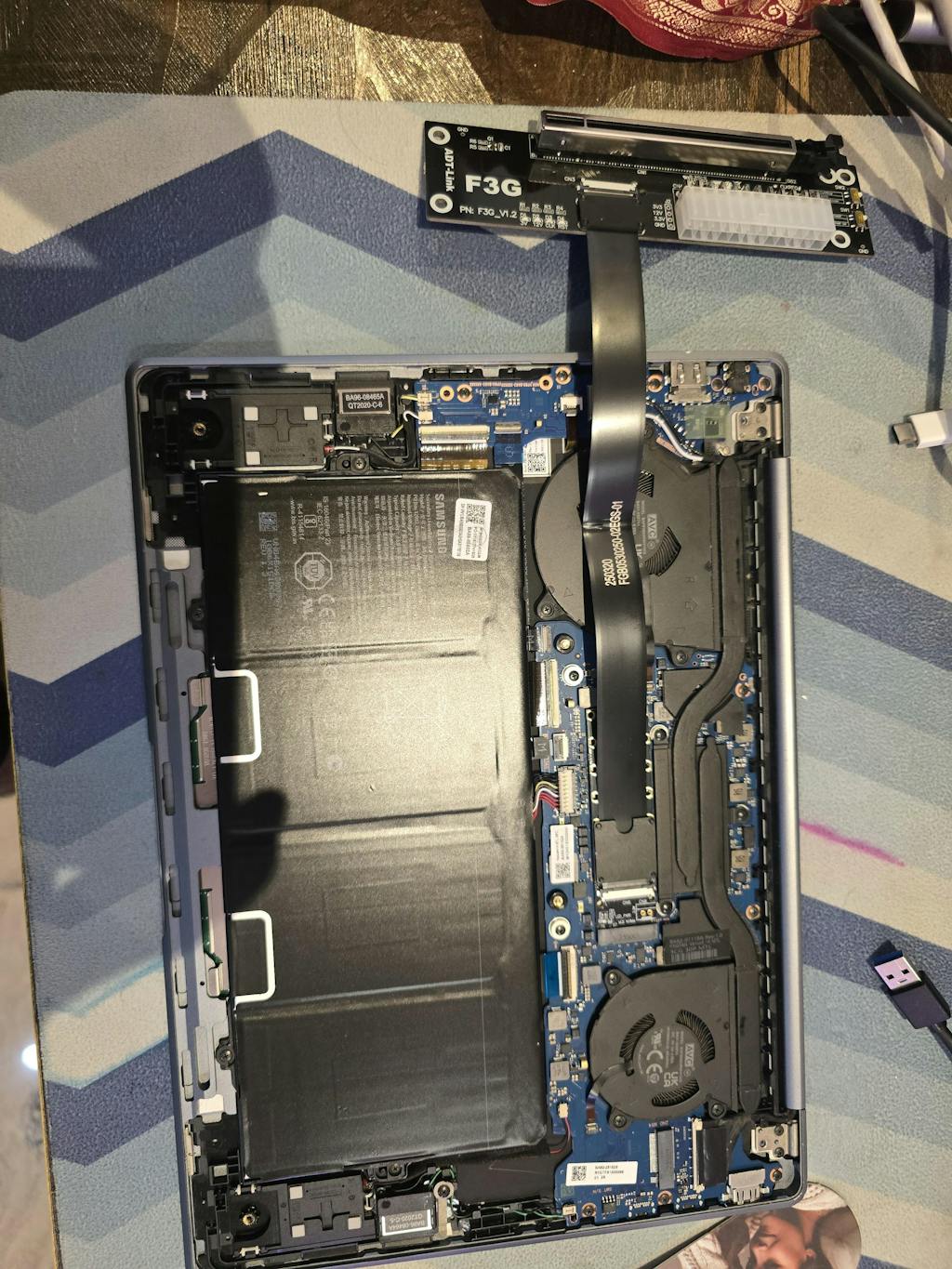

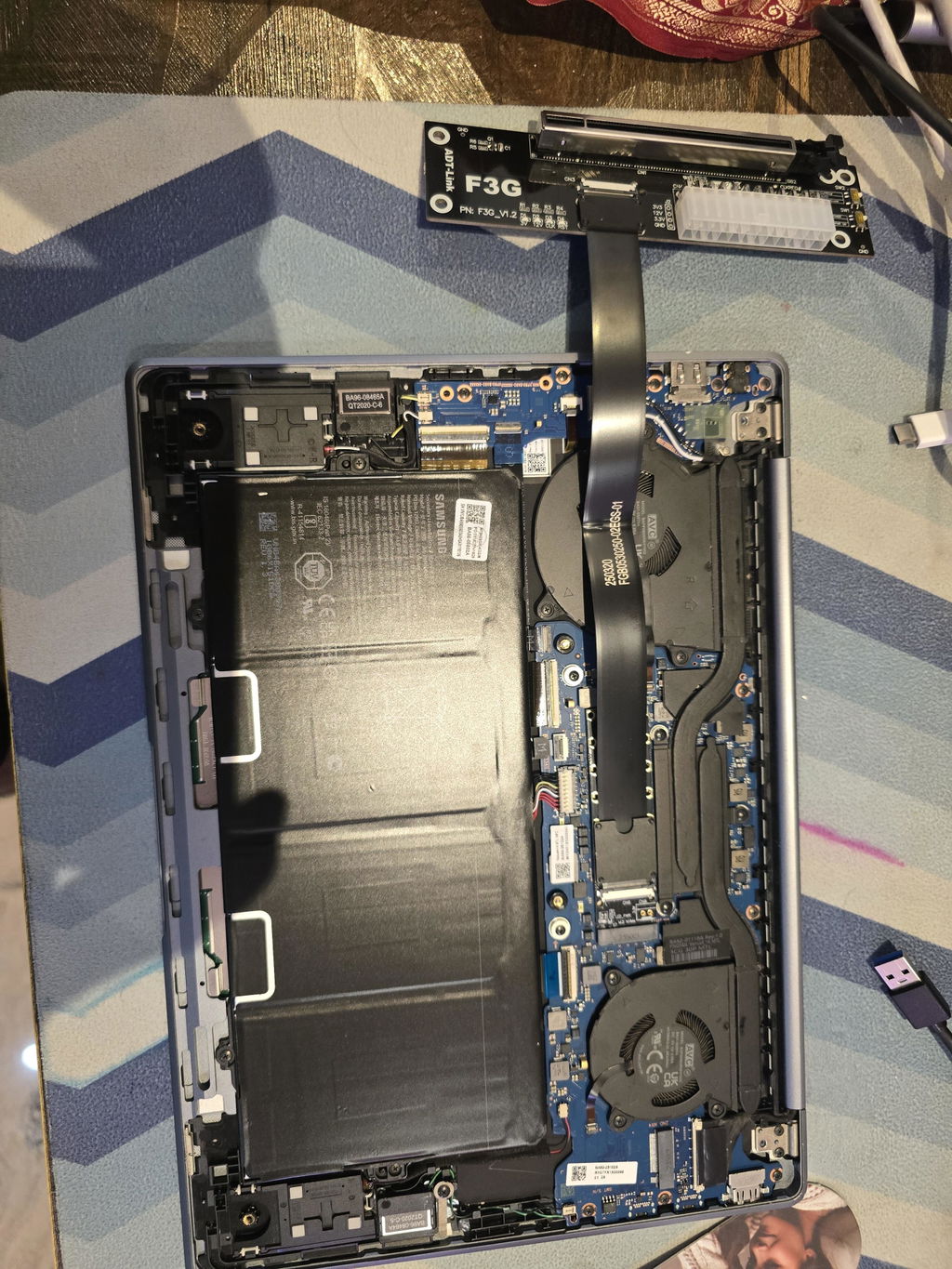

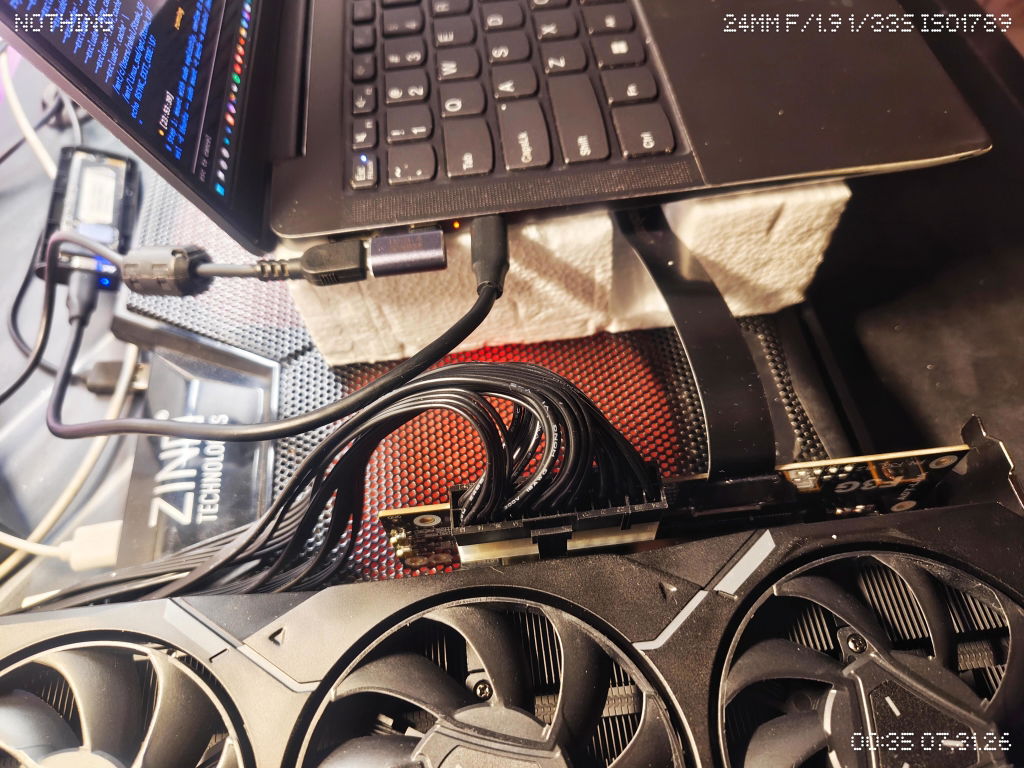

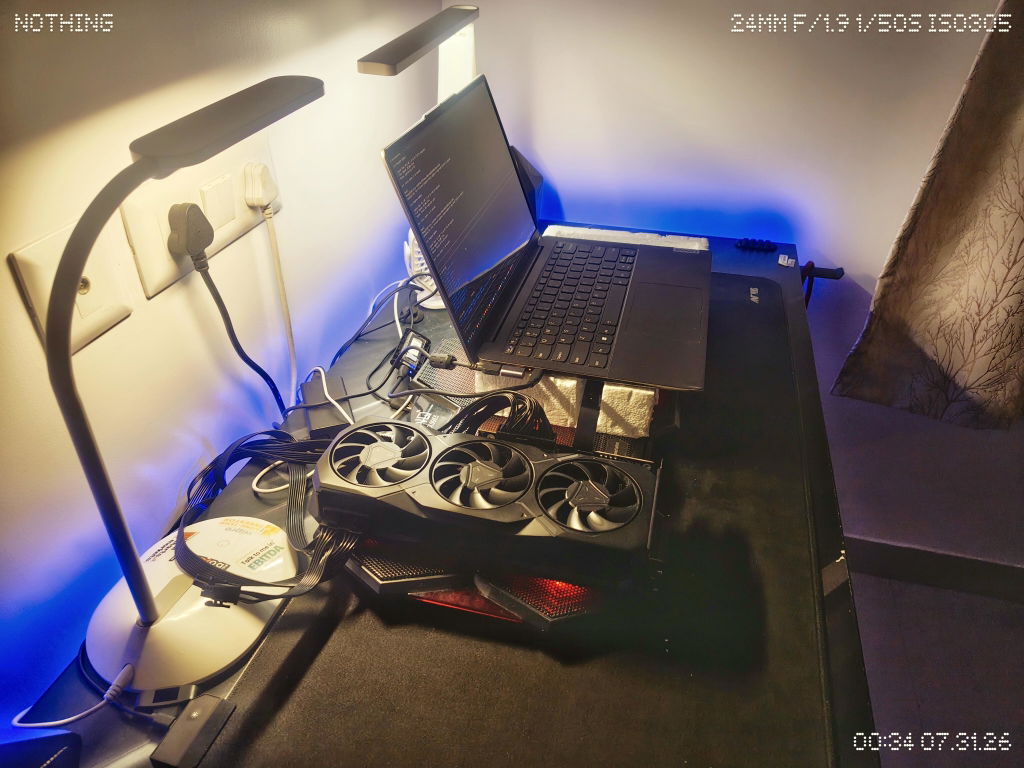

eGPU Set Up
⚙️ Specifications
- Interface: PCIe 5.0 x4 (up to 128 Gbps)
- Cable Length: 25 cm (Measured from visible cable, not including PCB or connectors)
- Connector: 90° angled extension
- Ideal Use: eGPU setup for Intel NUC / ITX / STX / Notebook PCs
- Product Dimensions: 200mm (L) × 130mm (W) × 155mm (H), with 5mm PCB edge clearance.
⚠️ Compatibility Notes
- ✔ Supports: M.2 NVMe slots only
- ✖ Does not support: M.2 SATA / M.2 WiFi / M.2 WWAN / USB interfaces
- ✔ Graphics Card Support: All GPUs released after 2015
- ✖ Not supported: GPUs released before 2015

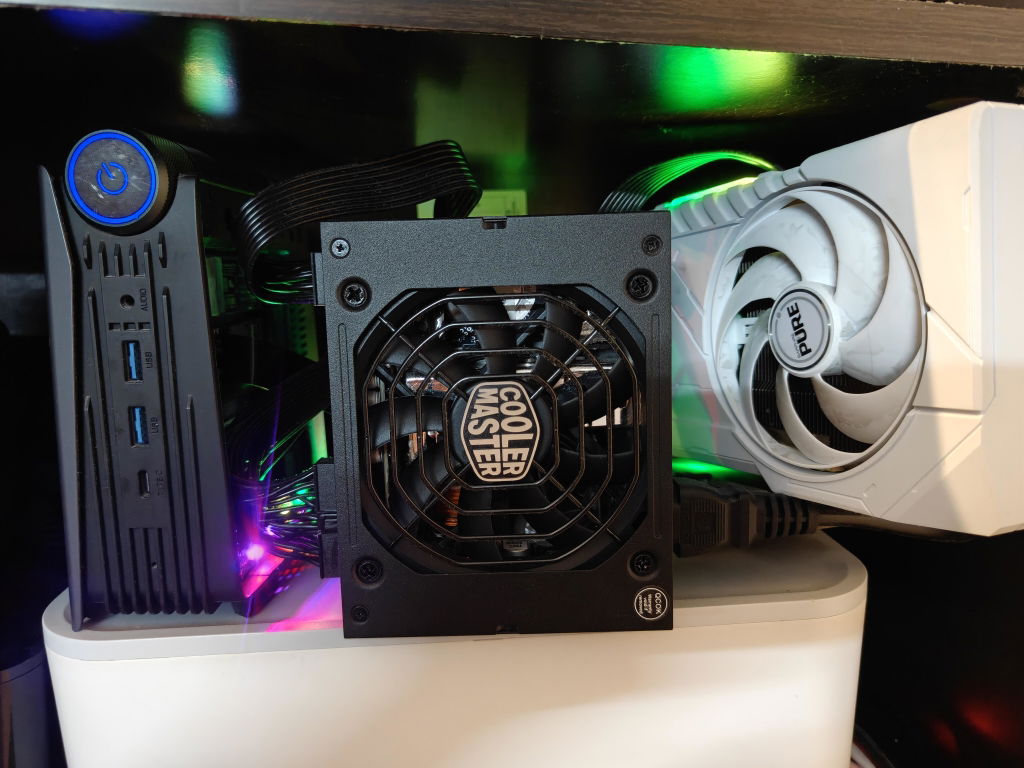

🔌 Power Requirement
- PSU Type: ATX PSU with 500W or more
- Note: Power supply must be arranged or purchased separately.
💎 Key Features
- Quick Diagnostics: Four indicator lights for CLK, RST, 12V, and 3V.
- EMI Shielding: Aluminum alloy gaskets effectively block EMI and improve durability.
- Flexible Design: Flat FFC cable with full shielding, only 0.5mm thick—flexible, soft, and space-saving.
- Stable Signal: 4-layer impedance-controlled PCB ensures stable transmission up to PCIe 5.0 standards.
- High Durability: 10µ” gold-plated contacts for high durability and stable performance.
- Premium Connector: Amphenol connector with PA10T/LCP shell, 50-cycle durability, RoHS and Halogen-Free compliant.
0.5mm thickness

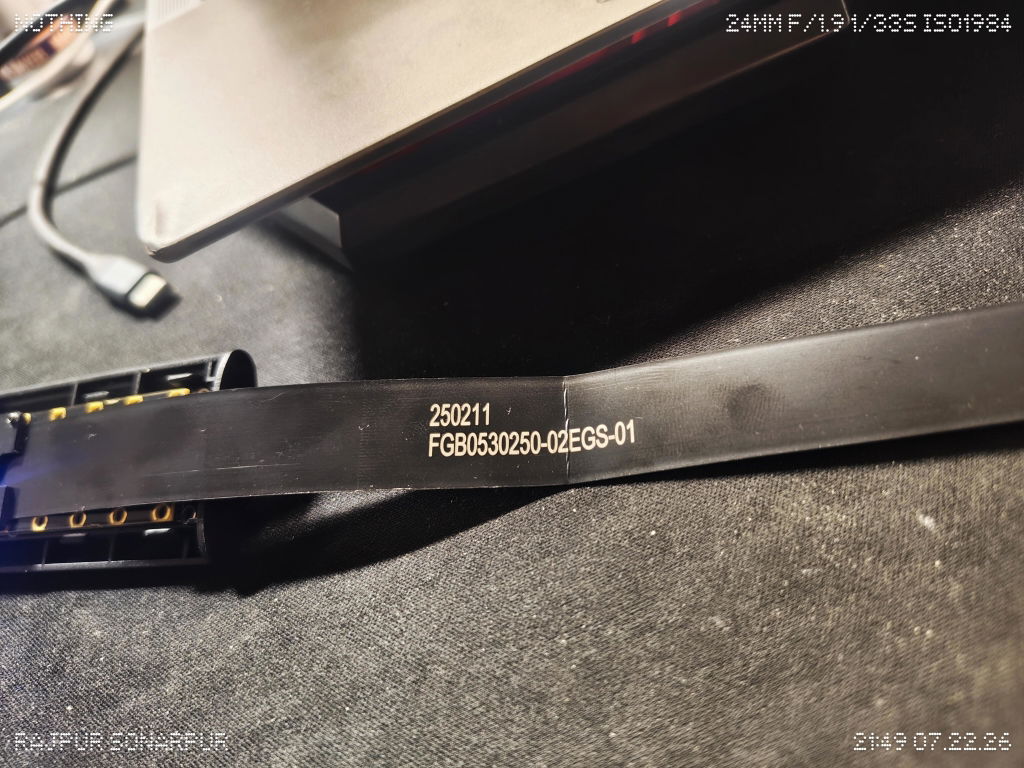

The cable is only 0.5mm thick, making it ultra-soft, flexible, and easy to bend or fold—ideal for compact setups and tight spaces
Flexible Cable
Cable is soft and bendable—perfect for space-constrained
PCIe 5.0
The F43SG cable has been lab-tested to achieve the full speed of PCIe 5.0.
SW1 Switch
Set SW1 to position 1 for automatic start; position 2 enables forced start
