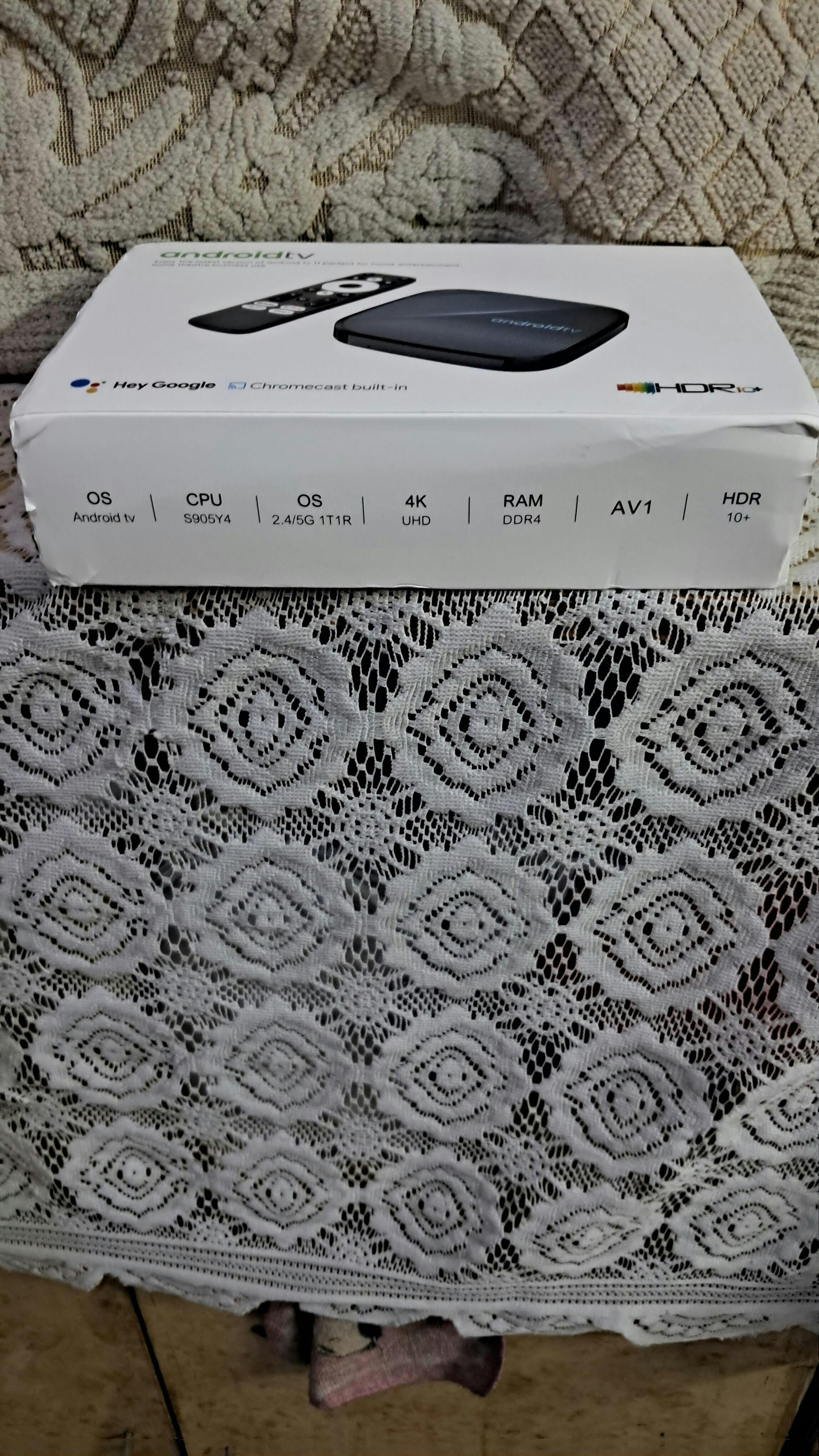

NOTE = The packaging of Hako Pro has been upgraded along with the processor which is now S905Y-B
|
Brand
|
ElectroniksIndia
|
|
SOC
|
Amlogic S905Y4
|
|
CPU
|
ARM Quad 64-bit Cortex-A35
|
|
DRAM
|
DDR4 4GB
|
|
Flash
|
eMMC 64GB
|
|
Graphics
|
ARM Mali-G31 MP2 GPU
OpenGL ES3.2,Vulkan1.1 and OpenCL2.0 |
|
HDR
|
HDR 10, HLG, HDR 10+
|
|
OS
|
Android 11
|
|
DRM
|
Widevine,Playready
|
|
Resolution
|
Up to 4Kp60
|
|
Ethernet
|
RJ45 Interface 10M/100M adaptive
|
|
Wi-Fi
|
2 x 2 MINO Wi-Fi 2.4GHz/5GHz 802.11a/b/g/n/ac
|
|
Bluetooth
|
5
|
|
Video Codes
|
·AV1 MP-10@L5.1 up to 4K*2K@60fps
·VP9 Profile-2 up to 4K*2K@60fps ·H.265/HEVC MP-10@L5.1 up to 4K*2K@60fps ·H.264/AVC HP@L5.1 up to 4K*2K@30fps ·MPEG-2 MP/HL up to 1080P@60fps ·Other codecs on request |
|
Audio Codes
|
·AAC-LC & AAC-HE
·MPEG-1 Layers 1,2,3 ·Dolby Audio and Dolby Digital Plus ·Other codecs on request |
|
Container
|
*.mkv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.mp3 and *.ogg
|
|
Power Supply
|
External 12.0V/1.0A
|
|
Power Consumption
|
12W Max
|
|
Operating Temperature
|
0℃ to 40℃
|
|
Operating Humidity
|
5%-85% Non-condensing
|
|
Size（W*D*H）
|
110mm x 110mm x 26mm
|
|
Digital Video
|
HDMI 2.1 with HDCP
|
|
Micro SD
|
support
|
|
Network
|
RJ45 LAN
|
|

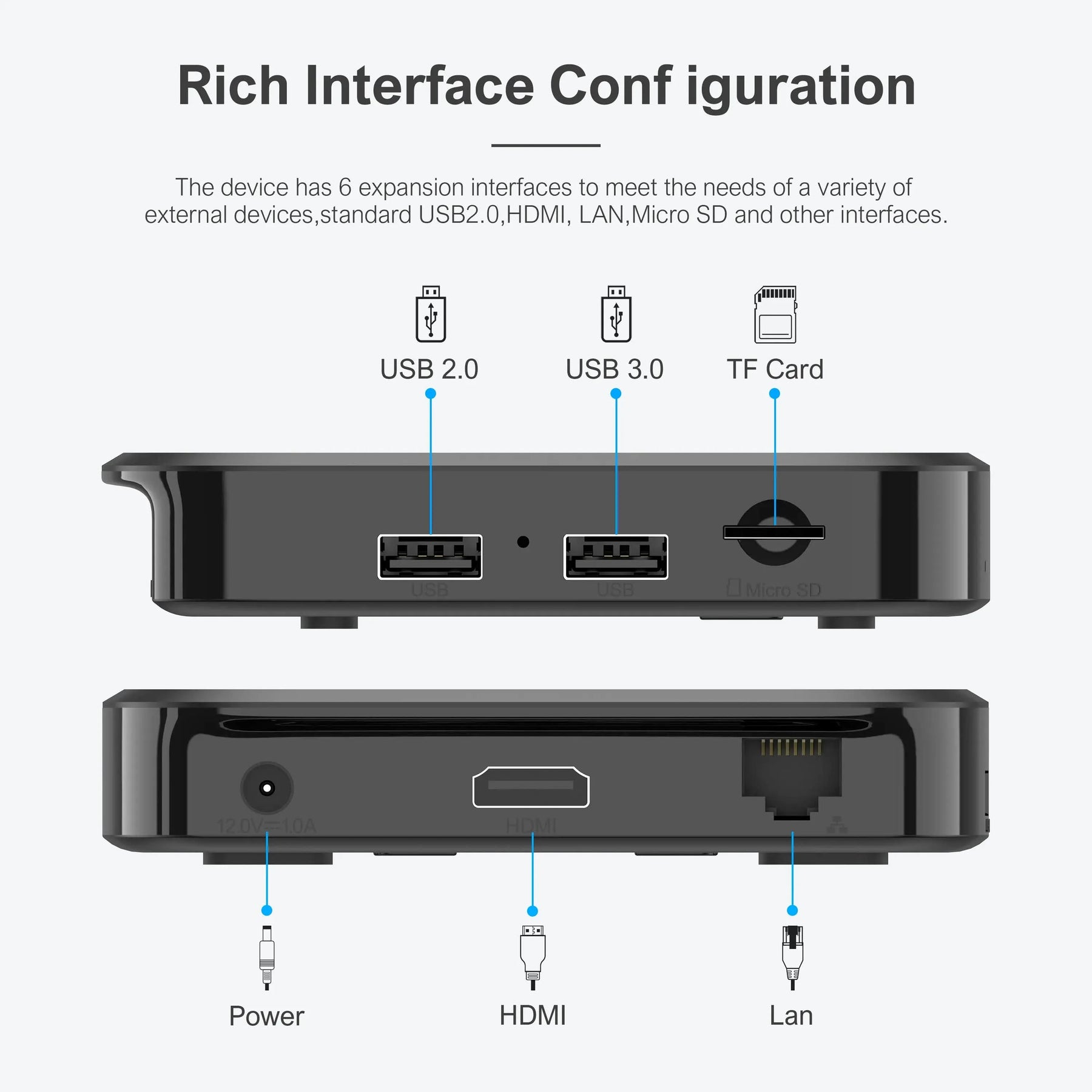

Peripheral Interface
|
2 x USB2.0
|
|
Power Interface
|
DC in
|
|
Other
|
IR Receiver, Power Indicator, Reset
|
|
Package Contents
|
|
|
Power Adapter
|
1 x Power Adaptor
|
|
HDMI
|
1 x HDMI 2.0 Cable
|
|
User Manual
|
1 x Quick Guide
|
|
Device
|
1 x STB Device
|
|

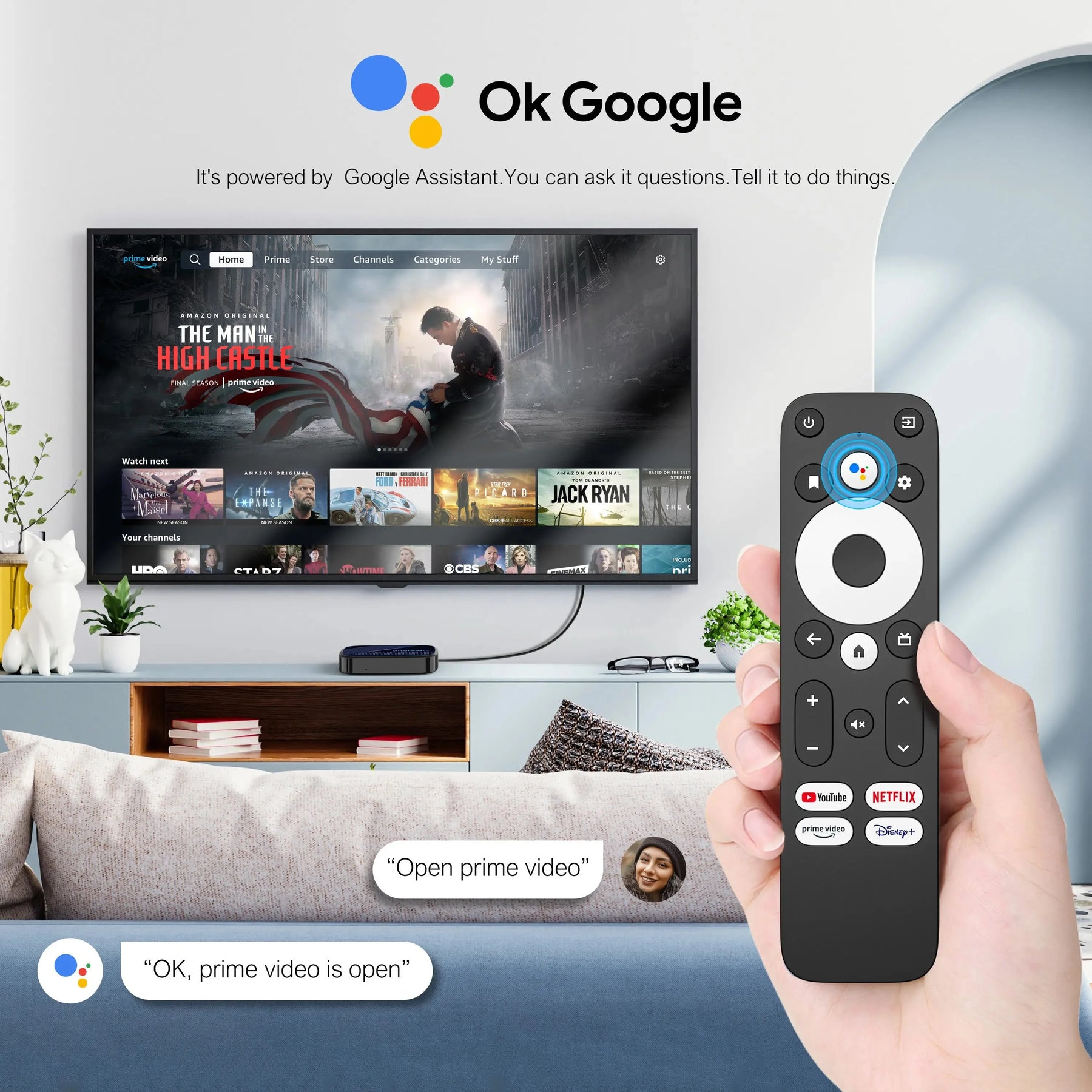

Remote Control
|
1 x Blue tooth and IR Remote Control
|
