Dragon by SkullSaints AMD Ryzen 7 5800U 16GB DDR4 500GB M2 SSD with Genuine Win 11 Pro, RGB Lights; 4K HDMI DP Type-C WiFi 6 BT 5.2 Mini PC

Product Appearance

• Dimension: 132.9mm x 156.1mm x 71.8mm
• Case Material: Plastics
• Weight: Not specified

System Hardware Configuration

CPU:

• Model: AMD Ryzen™ 7 5800U
• Manufacturing Process: TSMC 7nm FinFET
• Core: 8 cores and 16 threads
• Cache: L2 cache 4MB, L3 cache 8MB
• Base Speed: 1.9GHz
• Maximum Speed: 4.4GHz
• TDP: 15W

Memory:

• Model: SODIMM DDR4*2ch
• Speed: 3200MHz

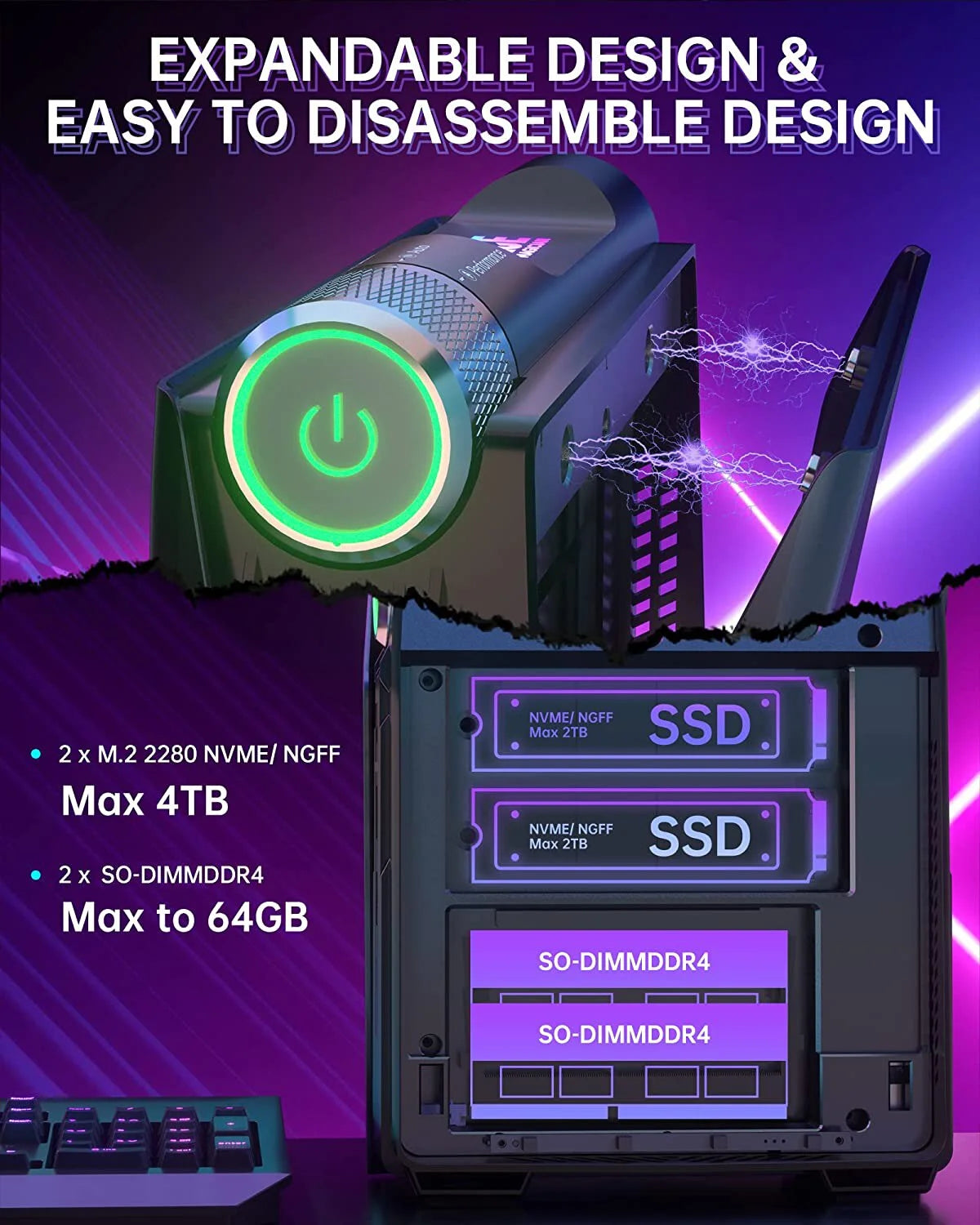

• Capacity: Up to 64GB

Storage:

• SSD Capacity: Up to 2TB
• SSD: 1*NVME & NGFF/SATA3.0

RTC:

• BIOS Support: Real-time clock, timed power-up

Power-On:

• BIOS Support: Supports automatic power-on after power-on

Diskless Network:

• BIOS Support: Support UEFI diskless boot

TPM:

• CPU Integrated TPM: Supports TPM 2.0

Multi-Screen:

• Video Output: Supports HDMI + DP + Type-C three-screen simultaneous display under the system

LED:

• Status Indicator: Color RGB (adjustable)

Internet Connection

WIFI:

• Model: M.2 E_Key
• Protocols: IEEE 802.11 a, b/g, n, ac, ax (WiFi 6)

Bluetooth:

• Model: M.2 E_Key
• Protocols: Support Bluetooth 5.2

Ethernet:

• LAN1: 10M/100M/1000M Adaptive

Ports

USB:

• USB3.0: USB3.0 -A*4

HDMI:

• Video Output: HDMI 2.0 (Max 4K 60Hz) *1

DP:

• 4K Audio and Video Output: DP1.4 (Max 4K 60Hz) *1

RJ45:

• Gigabit Ethernet: RJ45 1000Mbps *1

Type-C:

• Data Transmission: Type-C *1 (full-featured)

Power:

• Power Button: x1

DC IN:

• Power Supply Input: 5.5/2.1mm DC Jack x1

Audio-in/out:

• Audio-in/out: 3.5mm Phone Jack x1 (2-in-1 connector)

Antenna1:

• FPC Antenna: WiFi 2.4+5G+BT x1

Antenna2:

• FPC Antenna: WiFi 6.0

Applied Environment

Operating Temperature:

• 0~40℃

Memory Temperature:

• -20~60℃

Humidity:

• 90% @ 40 °C (no condensation)

Accessories

Power Supply:

• Desktop/Plug-in: Input: 100~240V 50/60Hz, Output: 19V/3.42A, DC Header 5.5*2.1mm
